Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes

Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes
Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes
Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes

Büyük resim :  Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes

Ürün ayrıntıları:
Menşe yeri: Anhui
Marka adı: Innovo Bochen
Sertifika: CE
Model numarası: ZST-1450/1650/1900/2200
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 Takım
Fiyat: 24000-40000USD
Ambalaj bilgileri: Vakum Torbası
Teslim süresi: 15-30 Gün
Yetenek temini: Aylık 50 Takım
İletişim

Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes

Açıklama
Kullanım: lamine kağıt için palet istifleme Boyut Beklenmesi: Dokunmatik ekranla bir tuş
Satış noktası: İşçilikten Tasarruf İstifleme hızı: E FLÜT 12000 adet/saat
Makine tipi: Tahta için palet istifleme Makine kullanımı: Laminasyondan sonra kağıt istifleme
Makine Ağı Tartımı: 4800kg Min sayfa boyutu: 42*45cm
İstifleme hızı: 12000 pc/saat (E flüt) Maksimum Kart Boyutu: 1450*1450mm
Vurgulamak:

auto flip flop stacker machine

,

corrugated cardboard stacker machine

,

automated paper counting stacker

Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes
Auto Flip Flop Stacker Machine For Flute Litho Laminator

This stacking machine is an essential accessory for flute laminating machines, designed to automate paper counting, turning, and stacking processes in corrugated cardboard production.

Machine Details

The system consists of four integrated components:

  • Slow paper table for controlled material feed
  • Stacking table for paper accumulation
  • Turning table with paper pile inversion mechanism
  • Paper receiving table with pallet system

The automated process significantly reduces labor requirements while improving delivery efficiency and reducing manual handling intensity.

Technical Specifications
Model ZST-1450 ZST-1650
Max size 1500×1500mm 1700×1700mm
Min size 420×450mm 420×450mm
Applicable paper 150-800g/m² 150-800g/m²
Bottom paper A-F corrugated board, ≤10mm A-F corrugated board, ≤10mm
Speed 12,000 pcs/hour 12,000 pcs/hour
Power 8 kW 10 kW
Key Features
  • Newly designed delivery bin eliminates paper indentation from metal contact
  • Advanced belt conveying mechanism prevents creasing from paper weight
  • Fully automated paper counting and stacking process
  • Precision paper turning mechanism for consistent results
Machine Components

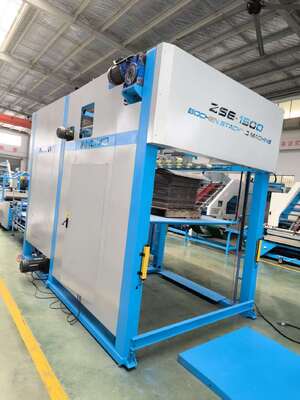

Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes 0
Optional Features

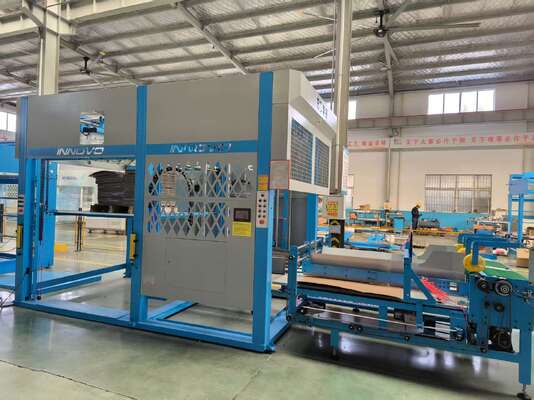

Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes 1

Semi-automatic pallet loading option available, providing labor savings and enhanced operator safety.

Machine Overview

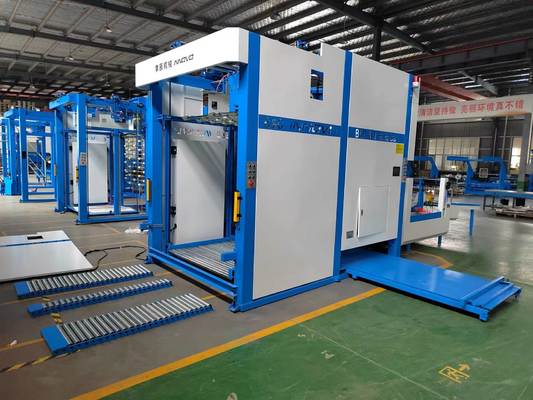

Auto Flip Flop Stacker Machine designed to improve corrugated cardboard production by automating paper counting turning and stacking processes 2
