High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations

High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations

Büyük resim :  High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations

Ürün ayrıntıları:
Menşe yeri: Anhui
Marka adı: Innovo Bochen
Sertifika: CE
Model numarası: SFC-1500/1700/1900
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 Takım
Fiyat: 65000-85000USD
Ambalaj bilgileri: Vakum Torbası
Teslim süresi: 45 gün
Yetenek temini: Ayda 30 takım
İletişim

High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations

Açıklama
Sürüş Türü: Elektrikli sürüş Aşağı kağıt kalınlığı kalınlığı: 400gsm-10mm Karton ve FLÜT
Hat Çalışma Hızı(m/dak): 150-160 FOB vadeli fiyatı: 70000-85000USD
Minimum sayfa boyutu: 1500: 40*45cm 1700: 45*45cm Laminasyon tipi: karton+oluklu mukavva+karton
Maksimum malzeme boyutu: 1500*1500mm ve 1700*1700mm Tutkal Silin Boyutu: Anilox Roller 160mm çapı
Ayarlama: Bir anahtar ayarı
Vurgulamak:

5ply flute laminating machine

,

servo control sheet laminator

,

corrugated paper laminating machine

High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations
Performance Characteristics
  • Laminates combinations of two corrugated boards and any top sheet to produce 2-layer, 3ply, 4ply, 5ply, 7ply products
  • Handles various laminating types: corrugated + corrugated + cardboard, corrugated + cardboard, cardboard + gray board + cardboard, etc.
  • Automatic paper detection with servo correction technology for precise top-bottom paper alignment
  • Imported servo motor control system with Japan NITTA suction belt and lead edge feeding
  • Multifunctional rack accommodates curved corrugated materials
  • 160mm stainless steel glue roller with fine anilox grinding for even coating
  • Dual-use lifting platform with pre-stacker structure
  • Polyethylene-coated rollers for automatic glue release
  • Circulating glue system reduces waste and stabilizes adhesion
  • One-touch machine adjustment via paper size input
  • Integrated video monitoring system
Technical Specifications
Model SFC-1500 SFC-1700 SFC-1900 SFC-2200
Max size 1500×1500mm 1700×1700mm 1900×1900mm 2200×2100mm
Min size 440*400mm 440×400mm 450×450mm 500×500mm
Top Paper 120-800g
Bottom paper 400gsm-10mm Corrugated board and cardboard
Max speed 160m/min
Power 22kw 25kw 27KW 30KW
Stick accuracy ±1-2.5mm
Structural Features
  • Advanced transmission control system with automatic paper size adjustment
  • Computerized high-speed fitting (up to 12,000 pieces/hour)
  • Chuanliu-type air supply head with multiple nozzle sets
  • Feida Block system for low stack cardboard handling
  • Multiple electric eyes for precise paper alignment
  • Full-function electronic control with HMI and PLC monitoring
  • Automatic glue replenishment with recycling system
Key Components

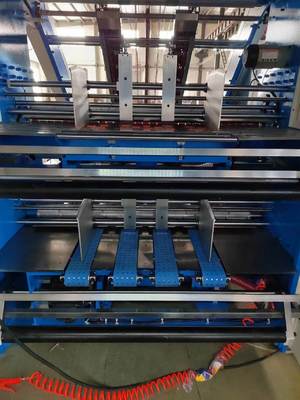

1. Bottom Paper Feeding
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations 0

Double lead edge feeding system ensures smooth bottom paper feeding and accommodates cardboard feeding.

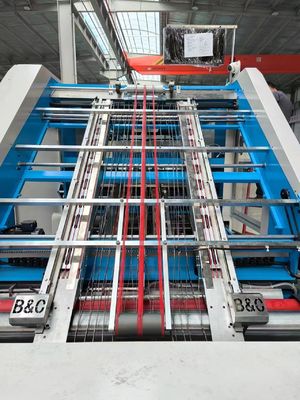

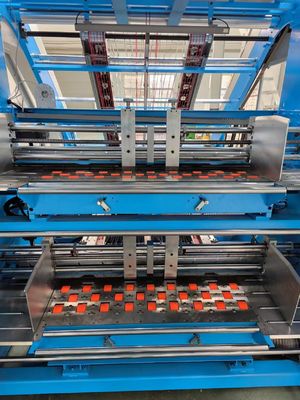

2. Top Sheet Feeding Mechanism
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations 1 High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations 2

Adjustable paper lifting and feeding nozzle system with Becker pump for smooth operation with various paper thicknesses.

3. Electrical System
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations 3

CE-compliant design with HMI and PLC interface displaying operational data, warnings, and error detection.

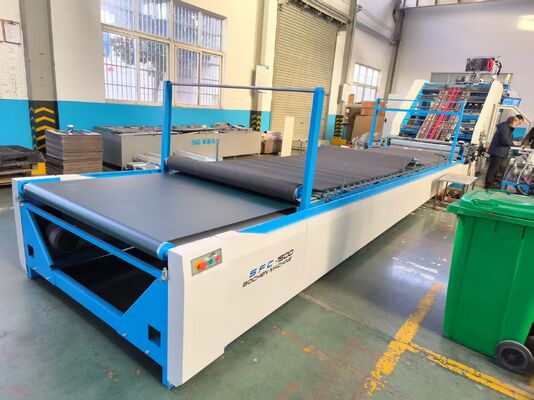

4. Pre-Stack Part
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations 4

Pre-pile system with touch screen configuration for efficient setup and orientation.

5. Transmission System
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations 5 High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations 6

Gates synchronous belt with SKF bearings for stable operation, featuring easy adjustment of pressure rollers and glue application.

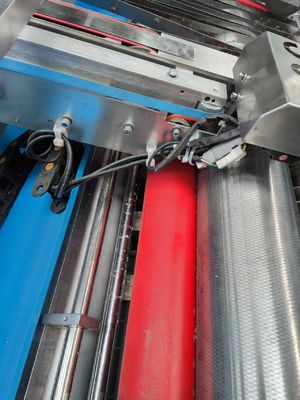

6. Positioning System & Glue Roller
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations 7

Multiple photoelectric sensors control servo motors for accurate top-bottom paper alignment. Features stainless steel glue roller for even coating.

7. Touch Screen Operation
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations 8

Centralized touch screen control with high-resolution interface for real-time monitoring and troubleshooting.

Optional Features
  • Leading Edge Feeding System (for large/thick sheets)
  • Shaftless Servo Feeder (for long top sheets)
  • Big Suction System (for multi-layer products)
  • Automatic Lubrication System (extends bearing life)
  • Video Monitoring System (remote operation monitoring)
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating Corrugated Paper in Multi Ply Configurations 9
