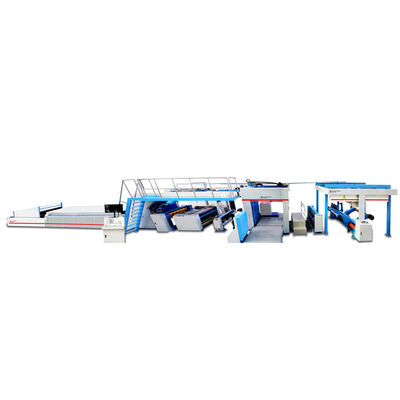

Corrugated Laminating Machine with High Speed Reel to Sheet Bottom Paper Roll Feeding and Flip Flop Stacker Line for Packaging

Corrugated Laminating Machine with High Speed Reel to Sheet Bottom Paper Roll Feeding and Flip Flop Stacker Line for Packaging
Corrugated Laminating Machine with High Speed Reel to Sheet Bottom Paper Roll Feeding and Flip Flop Stacker Line for Packaging
Corrugated Laminating Machine with High Speed Reel to Sheet Bottom Paper Roll Feeding and Flip Flop Stacker Line for Packaging Corrugated Laminating Machine with High Speed Reel to Sheet Bottom Paper Roll Feeding and Flip Flop Stacker Line for Packaging Corrugated Laminating Machine with High Speed Reel to Sheet Bottom Paper Roll Feeding and Flip Flop Stacker Line for Packaging Corrugated Laminating Machine with High Speed Reel to Sheet Bottom Paper Roll Feeding and Flip Flop Stacker Line for Packaging

Büyük resim :  Corrugated Laminating Machine with High Speed Reel to Sheet Bottom Paper Roll Feeding and Flip Flop Stacker Line for Packaging

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: INNOVO BC
Sertifika: CE
Model numarası: 1450/1650
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 takım
Fiyat: 350000-450000USD
Ambalaj bilgileri: Vakum Torbası
Teslim süresi: 60-90 gün
Ödeme koşulları: L/C,T/T
Yetenek temini: 1 takım/ay
İletişim

Corrugated Laminating Machine with High Speed Reel to Sheet Bottom Paper Roll Feeding and Flip Flop Stacker Line for Packaging

Açıklama
Maksimum genişlik: 1450/1650mm Minimum Genişlik: 450/500mm
Maksimum kağıt boyutu: 1450*1450mm/1650*1650mm Min kağıt boyutu: 450*450mm/500*500mm
Laminasyon Hassasiyeti: ± 1 mm Maksimum Hat Hızı: 150m/dakika
Çapraz kesme doğruluğu: ± 1 mm

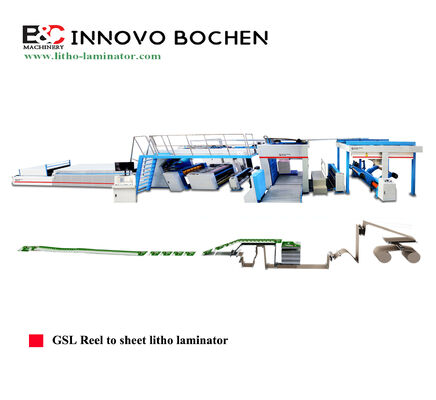

High-Speed Corrugated Laminating Machine Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line 150m/min
High-Speed Corrugated Box Packaging Solution (150m/min)
Corrugated Laminating Machine with High Speed Reel to Sheet Bottom Paper Roll Feeding and Flip Flop Stacker Line for Packaging 0
Technical Specifications
Model 1450 1650
Max width 1450mm 1650mm
Min width 450mm 500mm
Max paper size 1450*1450mm 1650*1650mm
Min paper size 450*450mm 500*500mm
Laminating accuracy ±1mm ±1mm
Max line speed 200m/min 200m/min
Cross cutting accuracy ±1mm ±1mm
Max collection speed 18000pcs/h (E flute)
16000pcs/h (B flute)		 18000pcs/h (E flute)
16000pcs/h (B flute)
Max collection height 1800mm (includes pallet) 1800mm (includes pallet)
Key Components & Features
1. Hydraulic Mill Roll Stand
  • Maximum paper roll diameter: 1500mm
  • Maximum paper roll weight: 4500kg
  • Robust design with full hydraulic drive for stable, reliable operation
  • Expansion chip prevents damage to paper core
  • Pneumatic multi-point brake control maintains constant paper roll tension
2. Automatic Splicer Machine
  • Maximum paper join width: 1450mm/1650mm
  • Maximum rolling paper diameter: 1500mm
  • Minimum resistance: 3n/mm
  • Tension control range: 10-100kgf
  • PLC control system for low failure rate and high machine stability
3. Corrugated Traction System
  • Swing roller automatically adjusts corrugated tension
  • Adjustable pressure roller gap for different corrugated types
  • Frequency reduction reducer drive
  • Point control for convenient paper threading
4. Underground/Ground Conveyor
  • Facilitates paper head transportation during threading
  • Belt running partial devices on both sides of dynamic roller
5. Bottom Sheet Aligner System
  • High-precision aligner ensures perfect fit accuracy
6. Corrugated Traction Glue Machine
  • Circulating glue system reduces glue loss and stabilizes adhesion
  • Compatible with white glue or starch glue
  • Stainless steel gluing roller with dynamic balance correction
7. Servo Sheeter
  • Synchronous servo cutting with color marking detection
  • Imported servo system and spiral blade
  • Precision positioning and tailoring
8. Automatic Flute Laminator
  • Maximum line speed: 200m/min
  • High-speed laminating without secondary corrugated positioning
  • Servo positioning ensures high accuracy
  • Non-stop feeding and pre-stacking
  • Intelligent glue volume and roller gap adjustment
  • Top sheet aligner system ensures side accuracy
  • Overlap feeding mode prevents paper jams
9. Automatic Flip Flop Stacker
  • Handles 10000-12000 sheets/hour high-speed lamination
  • Color surface remains completely contact-free and undamaged
  • Center-stacked cardboard for stable paper movement
  • Lateral movement of small stacks for convenient laminating and transport
  • Fully automatic stacking, flipping, and collection
  • Forward/reverse stacking prevents cardboard warping
  • Neat stacking improves product quality
  • Reduces labor requirements and intensity
  • Single-pallet intelligent multi-stack stacking saves space
  • Automatic unstacking and pallet placement
