Auto Flip Flop Stacker Machine with Automated Paper Counting Turning and Stacking Capabilities for Corrugated Cardboard Production

Auto Flip Flop Stacker Machine with Automated Paper Counting Turning and Stacking Capabilities for Corrugated Cardboard Production
Auto Flip Flop Stacker Machine with Automated Paper Counting Turning and Stacking Capabilities for Corrugated Cardboard Production
Auto Flip Flop Stacker Machine with Automated Paper Counting Turning and Stacking Capabilities for Corrugated Cardboard Production Auto Flip Flop Stacker Machine with Automated Paper Counting Turning and Stacking Capabilities for Corrugated Cardboard Production Auto Flip Flop Stacker Machine with Automated Paper Counting Turning and Stacking Capabilities for Corrugated Cardboard Production Auto Flip Flop Stacker Machine with Automated Paper Counting Turning and Stacking Capabilities for Corrugated Cardboard Production Auto Flip Flop Stacker Machine with Automated Paper Counting Turning and Stacking Capabilities for Corrugated Cardboard Production

Büyük resim :  Auto Flip Flop Stacker Machine with Automated Paper Counting Turning and Stacking Capabilities for Corrugated Cardboard Production

Ürün ayrıntıları:
Menşe yeri: Anhui
Marka adı: Innovo Bochen
Sertifika: CE
Model numarası: ZST-1450/1650/1900/2200
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 takım
Fiyat: 24000-40000USD
Ambalaj bilgileri: Vakum Torbası
Teslim süresi: 15-30 Gün
Yetenek temini: Ayda 50 Set
İletişim

Auto Flip Flop Stacker Machine with Automated Paper Counting Turning and Stacking Capabilities for Corrugated Cardboard Production

Açıklama
Kullanım: lamine kağıt için palet istifleme Boyut Beklenmesi: Dokunmatik ekranla bir tuş
Satış noktası: İşçilikten Tasarruf İstifleme hızı: 12000 pc/saat
Makine Tipi: Tahta için palet istifleme Makine kullanımı: Laminasyondan sonra kağıt istifleme
Makine Ağı Tartımı: 4800kg Min sayfa boyutu: 42*45cm
İstifleme hızı: 12000 pc/saat (E flüt) Maksimum tahta boyutu: 1450*1450mm

Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator
Auto Flip Flop Stacker Machine For Flute Litho Laminator

This stacking machine is an essential accessory for flute laminating machines, designed to automate paper counting, turning, and stacking processes in corrugated cardboard production.

Machine Details

The system consists of four integrated components:

  • Slow paper table for controlled material feed
  • Stacking table for paper accumulation
  • Turning table with paper pile inversion mechanism
  • Paper receiving table with pallet system

The automated process significantly reduces labor requirements while improving delivery efficiency and reducing manual handling intensity.

Technical Specifications
Model ZST-1450 ZST-1650
Max size 1500×1500mm 1700×1700mm
Min size 420×450mm 420×450mm
Applicable paper 150-800g/m² 150-800g/m²
Bottom paper A-F corrugated board, ≤10mm A-F corrugated board, ≤10mm
Speed 12,000 pcs/hour 12,000 pcs/hour
Power 8 kW 10 kW
Key Features
  • Newly designed delivery bin eliminates paper indentation from metal contact
  • Advanced belt conveying mechanism prevents creasing from paper weight
  • Fully automated paper counting and stacking process
  • Precision paper turning mechanism for consistent results
Machine Components

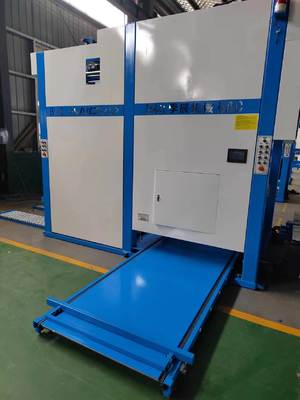

Auto Flip Flop Stacker Machine with Automated Paper Counting Turning and Stacking Capabilities for Corrugated Cardboard Production 0
Optional Features

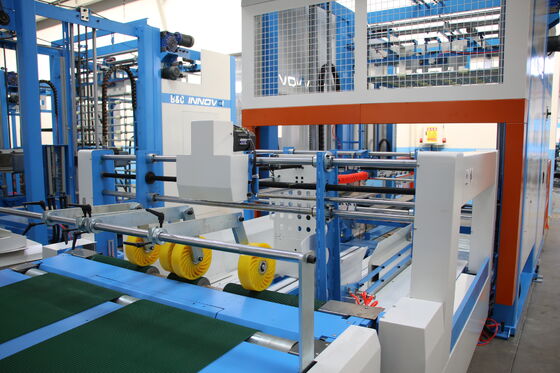

Auto Flip Flop Stacker Machine with Automated Paper Counting Turning and Stacking Capabilities for Corrugated Cardboard Production 1

Semi-automatic pallet loading option available, providing labor savings and enhanced operator safety.

Machine Overview

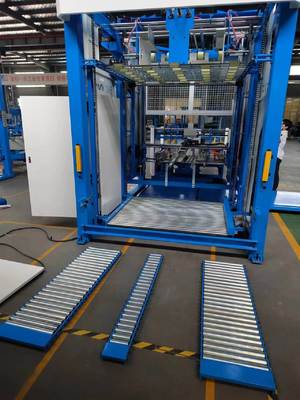

Auto Flip Flop Stacker Machine with Automated Paper Counting Turning and Stacking Capabilities for Corrugated Cardboard Production 2
