High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination

High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination

Büyük resim :  High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination

Ürün ayrıntıları:
Menşe yeri: Anhui
Marka adı: Innovo Bochen
Sertifika: CE
Model numarası: GFS-1500/1700
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 takım
Fiyat: 60000-78000USD
Ambalaj bilgileri: Vakum torbası
Teslim süresi: 30-45 gün
Yetenek temini: Ayda 30 Set
İletişim

High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination

Açıklama
Ödeme: T/T veya L/C makinenin net ağırlığı: 9400kg
Laminasyon tipi: kağıttan kartona veya kartondan oluklu mukavvaya Maksimum hat hızı: 215m/dak veya 20000 adet/saat
Garanti Zamanı: 2 yıl veya 24 ay Maksimum sayfa boyutu: 1500*1500mm ve 1700*1700mm
Güç Kaynağı: 380V/50Hz 3 aşama Ön kağıt kalınlığı: 100-800gsm basılı kağıt veya karton
Üretim tipi: Tamamen zeki Güç: 30kW
Uygulama: Laminasyon oluklu karton ve karton
Vurgulamak:

high speed flute laminator machine

,

flute laminator with reduced glue consumption

,

corrugated lamination cost savings machine

Circulating Glue System High Speed Flute Laminator Machine GFS1500
Reduced Glue Consumption in Corrugated Lamination
Performance Characteristics
  • Lead edge feeding system: No feeding pressure structure, prevents damage to corrugated material while enhancing pressure resistance.
  • Top sheet aligner system: Ensures high accuracy with optional overlap or separation sheet feeding modes.
  • Digital glue volume control: Automatic adjustment of glue volume and gluing roller gap based on bottom sheet thickness.
  • Large stainless steel anilox roller (160mm diameter): Provides stable, high-efficiency operation with even coating and glue savings.
  • Automatic paper detection: Servo correction technology ensures top paper accurately tracks bottom paper.
  • Dual-use lifting platform: Accommodates both pre-stacker paper feeding and direct stack feeding.
  • Multifunctional rack: Designed for curved corrugated materials.
  • Circulating glue system: Reduces glue loss and maintains stable adhesion.
  • One-click adjustment: Whole machine setup with simple paper size input.
  • Order memory function: Quick recall of previous settings for efficient operation.
  • Video monitoring: Optional system for operational oversight.
Technical Specifications
Model GFS1500 GFS-1700 GFS-1900 GFS-2200
Max size 1500×15000mm 1700×1700mm 1900×1900mm 2200×2100mm
Min size 360×380mm 380×400mm 450×450mm 500×500mm
Top Paper 120-800g 120-800g 120-800g 120-800g
Bottom paper 300gsm-10mm Corrugated board and cardboard
Max speed 200m/min 200m/min 200m/min 200m/min
Power 28kw 30kw 33KW 35KW
Stick accuracy ±1.0mm ±1.0mm ±1.0mm ±1.0mm
Structural Features
  • Advanced transmission control system with automatic paper size adjustment
  • Computerized high-speed fitting capability (up to 18,000 pieces/hour)
  • Chuanliu-type air supply head with multiple nozzle configurations
  • Feida Block system for efficient cardboard handling with optional track-assisted pre-stacker
  • Multiple electric eye sensors for precise paper alignment
  • Full-function electronic control system with human-machine interface and PLC monitoring
  • Automatic glue replenishment system with recycling capability
System Components

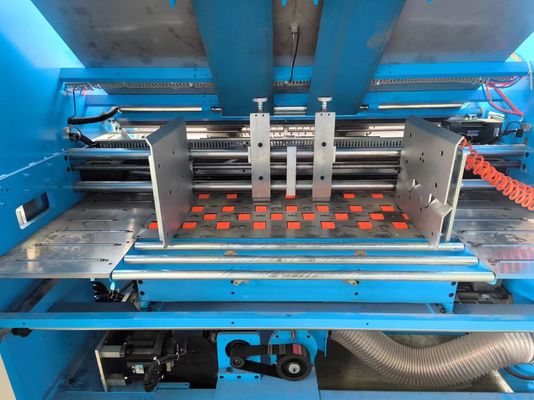

Bottom Paper Feeding
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 0
Servo motor controlled system with Japan NITTA suction belt for smooth operation
Top Sheet Feeding Mechanism
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 1 High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 2
Adjustable system for both thin and thick paper with Becker pump for smooth operation
Electrical System
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 3
CE-compliant system with PLC and human-machine interface for comprehensive monitoring
Pre-Stack Part
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 4
Automated system reduces setup time with preset paper size configuration
Transmission System
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 5 High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 6
Gates synchronical belt with SKF bearings for stable operation
Left-Right Positioning System
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 7
Positioning System & Glue Roller
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 8
Precision stainless steel roller with multiple photoelectric sensors for accurate alignment
Touch Screen Operation System
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 9
Centralized control with real-time monitoring and troubleshooting
Big Suction System for Bottom Paper (Optional)
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 10 High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 11
Optional system for enhanced handling of cardboard and multi-layer materials
Automatic Lubrication System
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 12
Regular bearing lubrication extends component lifespan
Shaftless Servo Feeder (Optional)
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 13
Optional system ideal for long size top sheets
Video Monitoring (Optional)
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 14
Optional system for remote machine monitoring

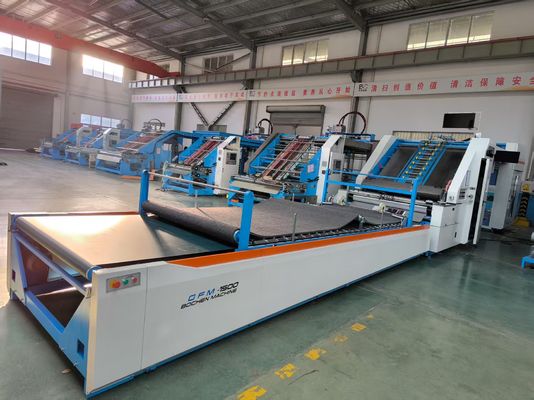

Machine Overview
High Speed Flute Laminator Machine with Reduced Glue Consumption for Cost Savings in Corrugated Lamination 15
